Eufy Doorbell Setup Process Explained

Learn easy steps to configure your Eufy doorbell camera setup at home

Eufy has introduced several smart devices for homes. And the doorbell is one of the many successful ones it has manufactured. If you have just opened your newly purchased Eufy doorbell and do not know how to proceed, this article will provide you with step-by-step instructions on Eufy doorbell setup, regardless of which model you own. You can find below the steps for setting up your Eufy doorbell, either wired or battery-operated.

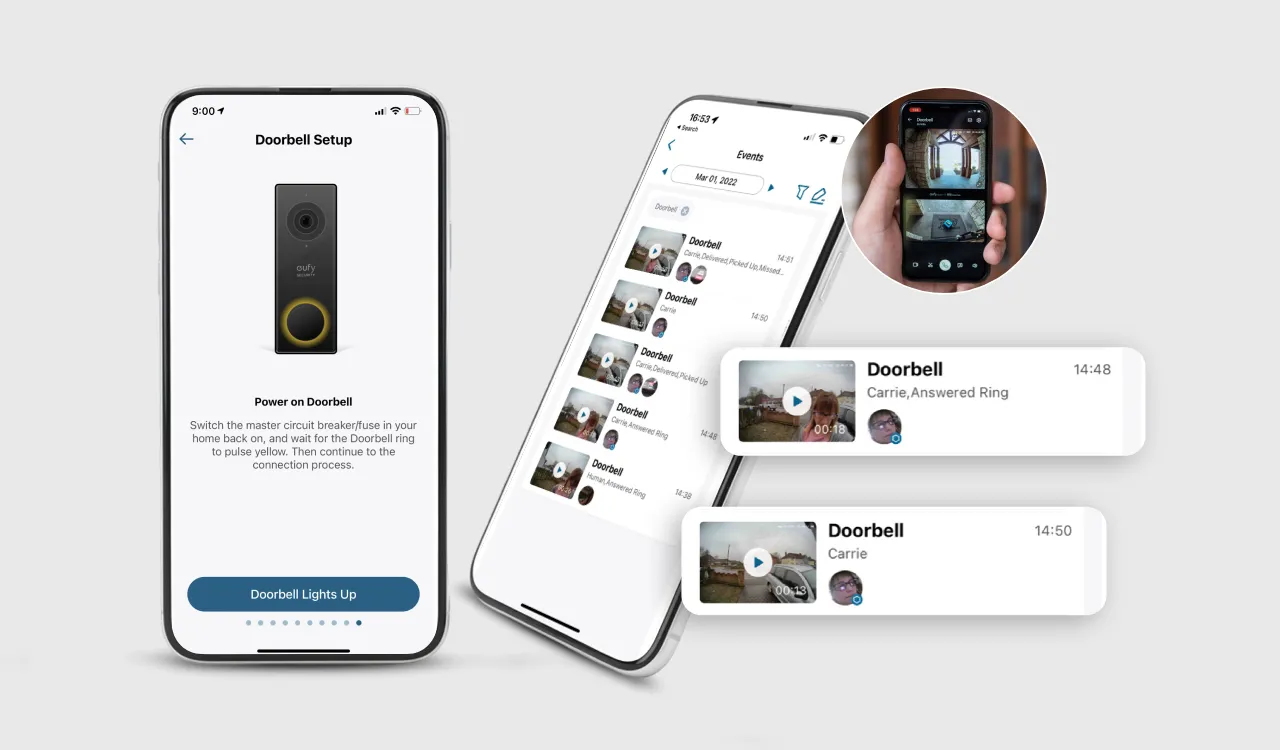

Eufy Doorbell Setup via Mobile App

Every Eufy doorbell system begins with the Eufy doorbell app setup. Prior to mounting any components, ensure that you have downloaded the Eufy Security app.

The Eufy Doorbell app setup is available for download on the App Store (for iOS devices) and Google Play Store (for Android devices).
Tap “Sign Up” to register an account, or log into your existing Eufy account by tapping “Log In.” You can use your email or sign up using third-party accounts such as Apple or Google.
After you clear the Eufy login page, click on the “+” sign at the top right-hand corner of your screen.
Navigate to “Security” -> “Doorbell”, then select your desired model from the options provided.
Go through the on-screen instructions in order to setup eufy doorbell with the 2.4GHz Wi-Fi network (Eufy models cannot be connected to the 5GHz network).
If prompted, use your doorbell’s camera to scan the QR code shown in the application.
After connecting, assign a custom name to your device and set up motion detection areas. Once done, the eufy doorbell camera setup is complete.

Eufy Wired Doorbell Setup

When you are looking to setup Eufy doorbell for your current one, it should be easy enough for you if your home already has low-voltage wiring ranging from 16-24V AC.

Make sure that power is off at the circuit breaker before you begin connecting the wires.
Disconnect the wiring from the previous doorbell and uninstall it.
Mount the Eufy doorbell setup using the supplied screws and anchors.
Connect the two wires to the terminal screws on the back of the Eufy doorbell unit.
Install the doorbell on the bracket.
Switch on power at the circuit breaker. The LED light of the doorbell should be illuminated, signifying that power is flowing to it.
Install the Eufy Security application as per the procedure outlined above.

If you have a pre-installed indoor chime, then the installation process will not affect it in any way, except for possibly requiring the use of the chime connector included to avoid buzzing sounds.

Battery-Powered Eufy Doorbell Setup Method

No existing doorbell wiring? Not an issue. The eufy wireless doorbell setup needs no electrician and no more tools than a screwdriver.

Make sure you fully charge the battery prior to installation using the provided magnetic charging cable until the LED light is steady green (4-6 hours).
Download the Eufy Security app and log in to your Eufy account.
Within the app, click “+” then select the model of battery doorbell you have.

When you are done with setting up the app, mount the bracket for the doorbell at your desired location using the screws or adhesive tape.
The doorbell can be mounted on the bracket by simply placing it there since it will click magnetically.
In case you need to change the angle for detecting motion, use the wedge mount provided in most doorbells.

Battery-operated doorbells are best for people living on rent or where low voltage wire is not available.

Eufy Doorbell + HomeBase Setup

Some of the Eufy doorbells, especially those that are part of the EufyCam family, need a HomeBase device for local storage and enhanced range. Here is how you can setup Eufy doorbell with Home Base.

First, set up your Home Base. Connect the HomeBase to your Wi-Fi router using the provided ethernet cable and plug it into an electrical outlet.
Launch the Eufy Security app. Tap on the “+” button and select “HomeBase”. Follow instructions until the process is completed.
Then, tap on the “+” button again and select your doorbell model.
The app will prompt you to connect the doorbell to HomeBase, push the sync button on HomeBase, then push the sync button on the doorbell.
Listen out for the tone and confirmation from the app.
Finish the other steps (Wi-Fi, motion zones, alerts) using the app.

Local storage is also possible through the use of a microSD card or internal memory with HomeBase, allowing you not to rely completely on the cloud service.

Eufy Doorbell Chime Setup

Eufy doorbell chime installation allows you to install the wireless chime inside your house so that you can receive alerts from anywhere within the house instead of only receiving them via your smartphone.
Connect the Eufy wireless chime to any regular power socket inside the house.
Launch the Eufy Security app and select “Devices”.

Select your doorbell and go to “Doorbell Settings” > “Chime Settings”.
Tap “Add Chime” and go through the process of pairing.
After pairing, you can set the tone and volume of the chime right from the app.
Press the doorbell button to see if the chime rings almost instantly.

In case your chime does not ring after pairing, check if it’s close enough to your Wi-Fi router and if the electrical outlet works.

Common Issues and Fixes During Eufy Doorbell Setup

Even when the eufy doorbell camera setup process is simple, everything may not run smoothly. Here are some of the most common errors that occur during the Eufy doorbell installation, and their solutions.

Eufy Doorbell Won’t Connect to Wi-Fi

This is one of the most common Eufy setup problems that occurs when you setup Eufy doorbell. It’s usually caused by a couple of simple factors:

Ensure you have the correct Wi-Fi band. The Eufy doorbells can only connect to 2.4 GHz bands. In case your router sends out both 2.4 GHz and 5 GHz with the same name, try separating them temporarily or getting closer to the router.
Get closer to the router while trying to connect.
Verify your password is correct, any mistake will prevent you from connecting.
Reboot your router then try pairing again.
Try resetting the doorbell and start the eufy doorbell wifi setup all over again.

Eufy Doorbell Camera Not Scanning QR Code

If the camera mounted on your doorbell fails to scan the QR code appearing on the phone screen:

Maximize the brightness of your screen.
Position your phone at the prescribed distance (typically 15-20 cm).
Clean the doorbell camera lens using a soft cloth.
Use an alternate device to display the QR code if possible.

Eufy App Cannot Find Doorbell

For the Eufy Security app not detecting the device at the time of setting up:

Ensure that the Bluetooth and Location services of your phone are active as these are necessary for the first-time detection.
Check whether the doorbell is in pairing mode (normally signified by a blinking light or voice instruction).
Close and then re-launch the app to try again.
Try uninstalling and reinstalling the Eufy Security app.

Eufy Doorbell Not Working

In case of wired eufy doorbell camera setup:

Ensure the switch is ON and the wires have power by using a multimeter.
Ensure the wires are well-connected to the terminals.
Your transformer should match the voltage requirements (16-24V AC).

In case of battery-operated eufy security doorbell setup:

Ensure the battery is fully charged before installation.
Use a new charging cable/adapter.

No Alerts Generated for Motion Detection

If your doorbell does not generate alerts for someone approaching the door:
Open your app, go to the settings of your doorbell, and ensure that motion detection is turned on.
Verify whether the motion sensitivity is set high.
Examine the activity zones; if you have too narrow zones, then you may miss some motion.
Ensure that the doorbell camera does not face a light source.

Low or No Live Video Feed

Inability to get clear quality during live feed is usually caused by Wi-Fi problems:

Perform a speed test around the area where the doorbell is located. Eufy suggests at least 2Mbps upload speed for live feed.
Reduce the interference by placing your router closer or eliminating any objects between the router and doorbell.
Adjust the quality of video settings lower in the app for testing purposes.
Restart the doorbell through the app’s menu, “Device Settings” -> “Restart Device.”

Eufy Doorbell Offline After Setup

In case your setup Eufy doorbell goes offline after installation:

The Eufy camera offline issue might be due to your router, where if it has reset itself or modified its settings, then your doorbell needs to connect once again.
Ensure that your doorbell is still in range of the Wi-Fi connection.
Battery-powered doorbells should be checked for their charge levels; an empty battery means it will definitely go offline.
The latest firmware on the Eufy can make it go offline temporarily.

Eufy Chime/ Homebase Not Pairing

Ensure that the chime/ HomeBase is plugged in and the LED light is on.
Place both units in proximity for the first-time Eufy doorbell chime pairing.
Try rebooting the chime/Homebase and the doorbell, then try pairing once again.
In case you use the Homebase, ensure that it’s connected to the router using an ethernet cable.

Firmware Update Failure On Eufy

Failure of Eufy firmware update can be attributed to an incomplete update process. The following is a way out of this problem:

Ensure that you keep the doorbell active and connected to the Wi-Fi network all through the process without disconnecting from the application.
Your phone needs to remain online as well while updating the firmware.
In case of multiple failures, power down the doorbell and initiate the process from the “Device Settings” > “About Device” > “Firmware Upgrade”.
As a final measure, reset Eufy doorbell and redo the setup; the firmware will update seamlessly through the setup process.

Frequently Asked Questions

Why is my Eufy doorbell not connecting to Wi-Fi?

The most frequent cause is the use of a 5 GHz Wi-Fi band, while Eufy doorbells work only with a 2.4 GHz frequency. Please check the settings of your router and ensure that you connect to the right Wi-Fi band. Try the eufy video doorbell setup again.

How do I reset my Eufy doorbell?

For resetting the Eufy doorbell, press the reset button that is available either at the rear side of the device or inside the mounting bracket. Hold the reset button for around 10 seconds or until a voice prompt or an LED light is seen flashing. This will reset the device to its default factory settings.

Can I install the Eufy doorbell without existing wiring?

Yes. The Eufy doorbell that is battery-operated has been made specially for those houses that lack low voltage wiring. It comes with a rechargeable internal battery and can connect to the house Wi-Fi directly. The battery operated Eufy doorbell installation takes less than 15 minutes in most cases.

How do I view my Eufy doorbell on my phone?

Once you have set up your Eufy doorbell, go to the Eufy Security application and click on your doorbell under the “Devices” menu. Click on the live view button to get the live stream from your camera.

How do I fix live view not working?

Begin by ensuring that your Wi-Fi connection at the location of your doorbell is strong enough. The main reason why you will not be able to see the live view is due to poor Wi-Fi connections.

Do I need a hub for Eufy Doorbell?

No, not necessarily. For most wired and battery-operated Eufy doorbells, you will have no need for a HomeBase hub because all that is needed is a connection to your WiFi network.

Still wondering how to setup Eufy Doorbell?

Eufy doorbell installation process is easy when you know what to do. Regardless whether you choose a wired, battery-operated or wireless Eufy doorbell connected with a HomeBase and chime, the whole process will be guided by the Eufy Security app. Make sure to use a 2.4GHz Wi-Fi network and Eufy doorbell setup instructions provided here. In less than 30 minutes your doorbell will be up and working!

In case you encounter any difficulties in the process, go back to the troubleshooting steps provided above; most problems can be easily fixed without calling for any service.
